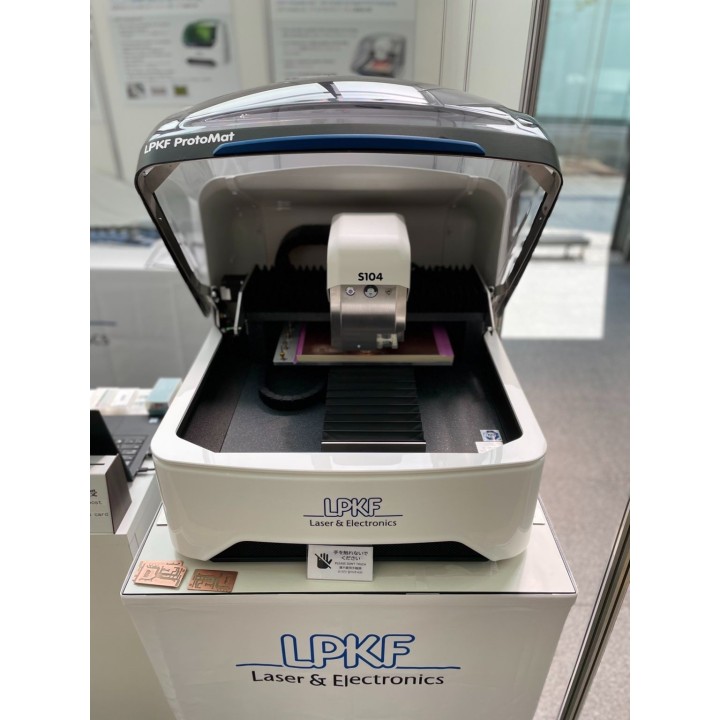

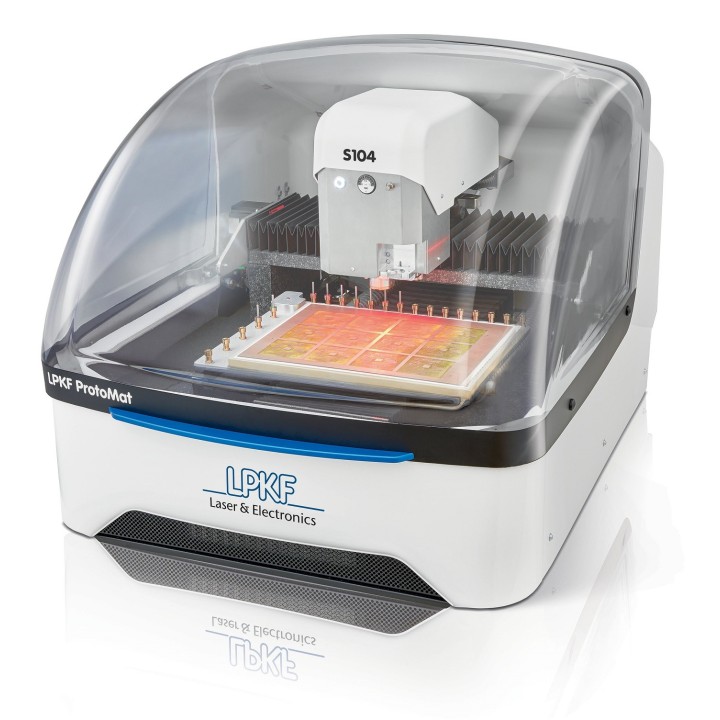

LPKF ProtoMat S104 PCB Milling Machine

$11,990.00
No tax

LPKF ProtoMat S104 PCB Milling Machine For Sale

  Security

Guarantee Safe & Secure Checkout

  Shipping & Tax

We Ship Worldwide - No Sales Tax

  Estimated Delivery

Usually dispatched within 24 - 48 hours

Selling New LPKF ProtoMat S104 PCB Milling Machine For Sale

The ProtoMat S104 is particularly fast and precise due to the 100 000 RPM spindle motor which allows for higher travel speeds with a mechanical resolution of just 0.5 μm. In combination with the machine’s stable granite base, this ensures optimum accuracy for drilling and milling of even very fine structures

Specifications

  • Trace Spacing and Width: 0.1mm (4 mil) for analog/digital designs, 0.15mm (6 mil) for RF designs
  • Drill Hold Diameter: 0.2mm (8 mil) minimum
  • Copper Thickness: 2 oz (70 micron) maximum
  • Material Size and Layout Area: 9” x 12” material maximum
  • PCB Material: fiberglass, PTFE, Teflon, LTCC and ceramic
  • Polymide Stencils: up to 8” x 12” maximum
