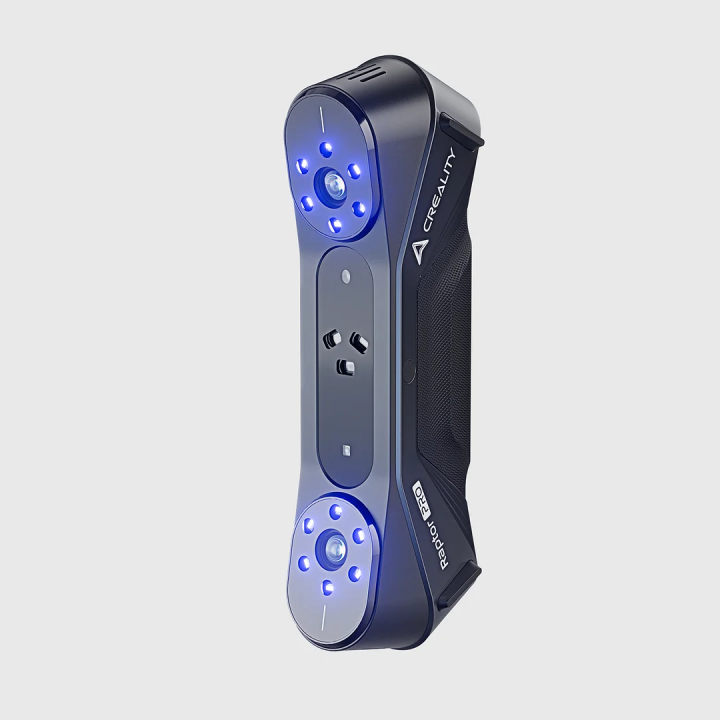

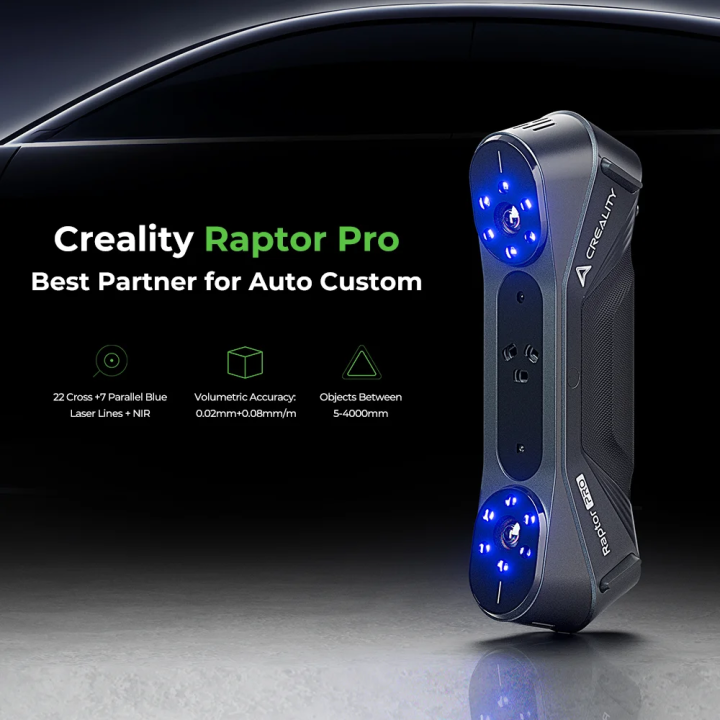

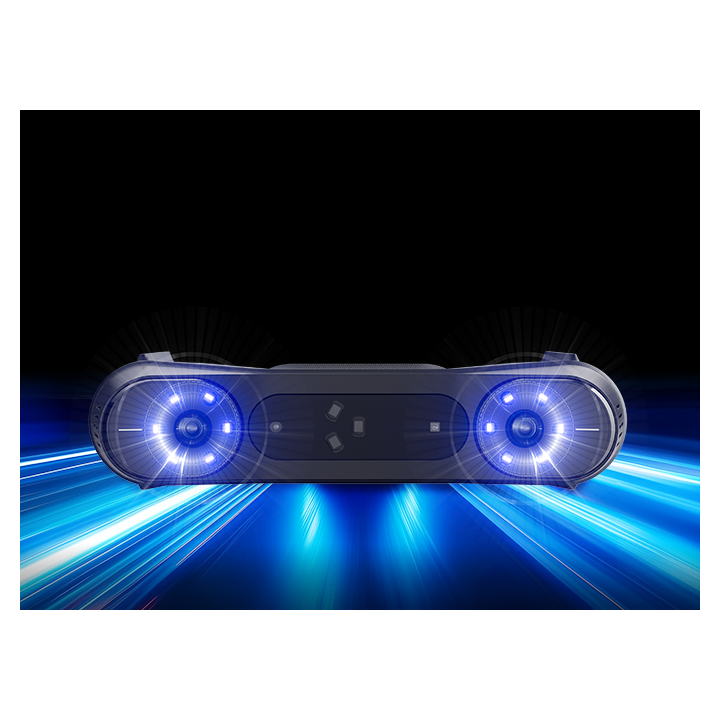

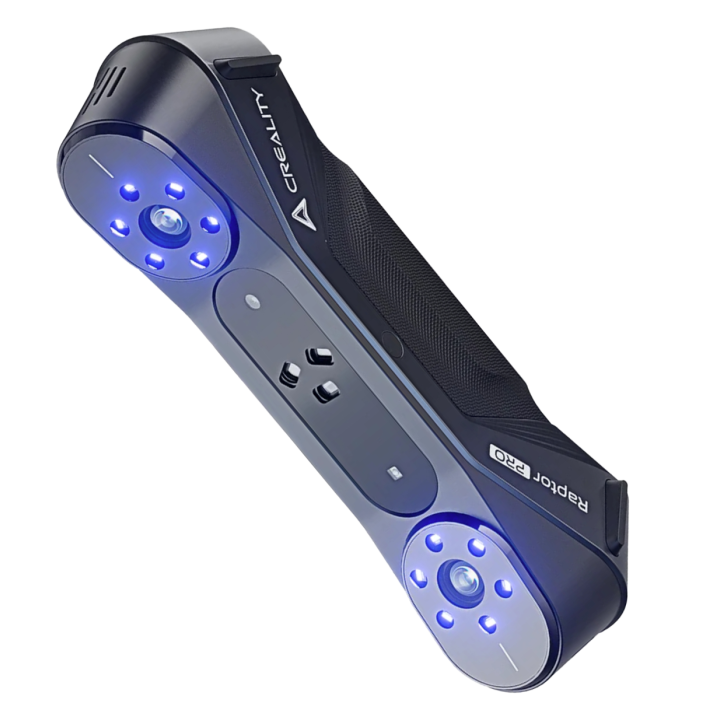

Creality Raptor Pro 3D Scanner
1-years warranty
Security
Guarantee Safe & Secure Checkout
Shipping & Tax
We Ship Worldwide - No Sales Tax
Estimated Delivery
Usually dispatched within 24 - 48 hours
Creality Raptor Pro is a professional hybrid 3D scanner that utilizes Blue Light Laser (405 nm wavelength) and NIR infrared structured light (850 nm wavelength) technologies to achieve dual-mode 3D scanning. It captures objects from 5 mm to 4,000 mm with 0.02 mm accuracy in Blue Light Mode and 0.075 mm in NIR Mode, compliant with ISO 10360-8 metrology standards.
The system operates without surface sprays, even on ferrous metals and matte-black surfaces, according to Creality’s 2024 technical specifications.
- 22 Cross Laser Lines& 7 Parallel Laser Lines &NIR Structured Light
- High Scanning Speed Up to 60fps 660,000 points/s and 60 Fps under laser scan mode
- Volumetric Accuracy 0.02mm+0.08mm/m
- Objects between 0.2-157" / 5-4000mm
- Scan Black/Metal Objects without Sprays
- NIR Scanning up to 30fps 24-Bit Full-Color Scanning
